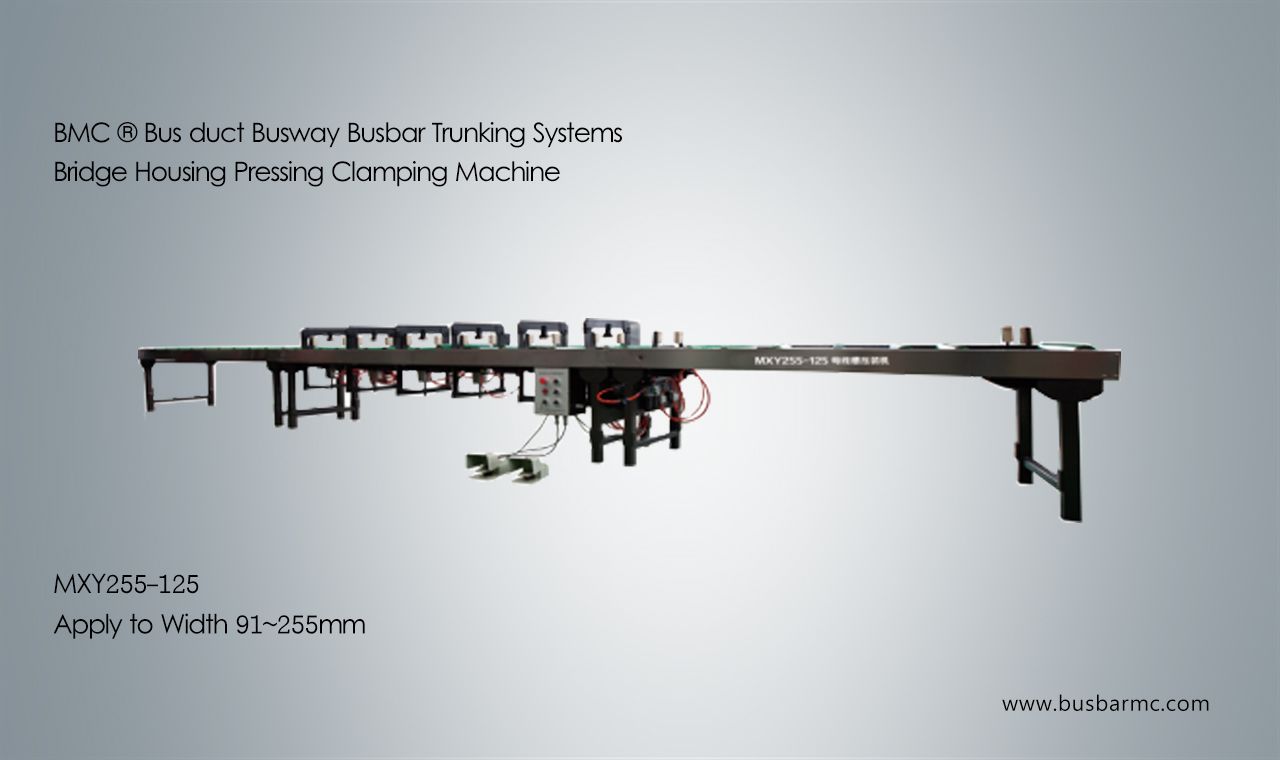

HQY255-125 Busduct Busway Bridge Housing Extrusion Pressing Clamping Machine

System Overview & AU Requirements:

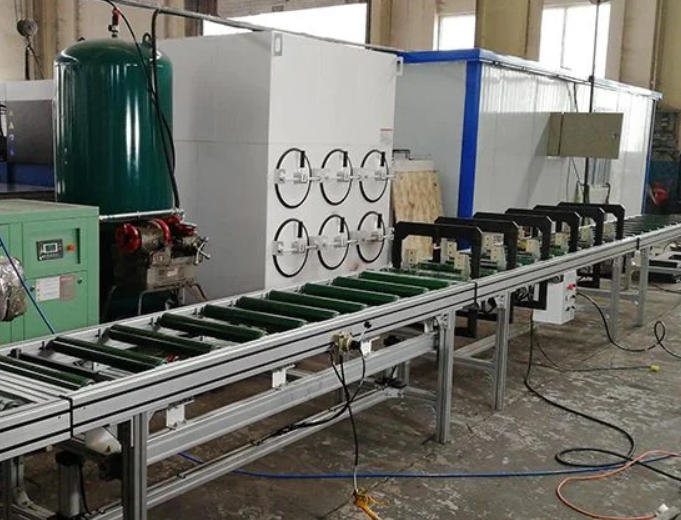

           The HQY255-125 Busway Pressing System is a professional-tier assembly solution for AU Switchboard Manufacturers. It features a triple-stage workflow: a Riveting Station, Pre-fabrication Table, and Discharge Table. Engineered for the heavy-duty riveting assembly of sandwich busway sections with widths of 91mm ~ 255mm and a height of 125mm. This machine ensures precision compression, allowing for seamless manual riveting and superior mechanical structural integrity in line with AS/NZS power distribution standards.

Core Technical Advantages:
           1. Relay Control & Pneumatic Precision: Utilises a robust relay control system with high-pressure pneumatic clamping for consistent assembly cycles.

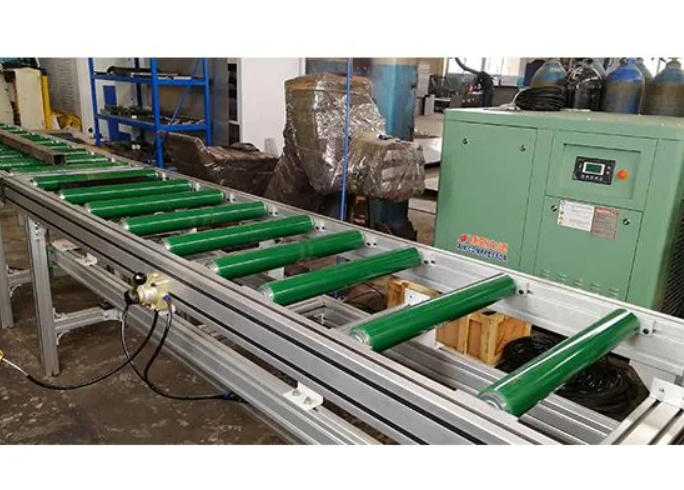

           2. Surface Protection: The non-powered rollers are fully integrated and coated with Premium Polyurethane to prevent any scratching or marring of the aluminium/steel busway bridge surface—critical for AU aesthetic and anti-corrosion requirements.
           3. Heavy-Duty Frame: The steel beam frame is precision-bent and supported by square hollow sections (SHS), allowing for adjustable height and stability. Finished in a professional industrial grey spray coating.

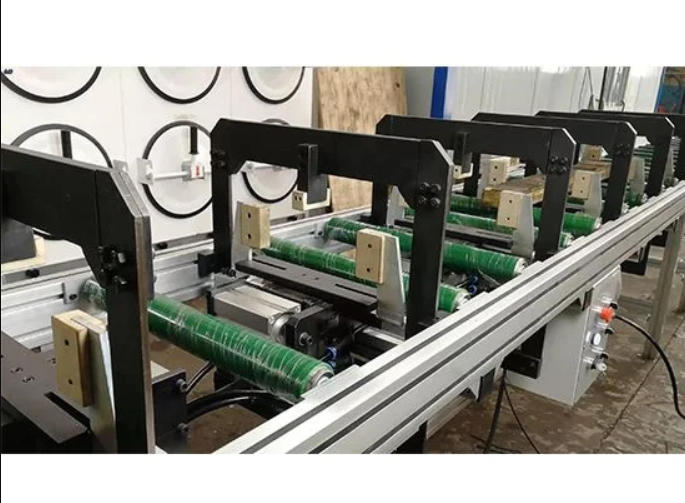

           4. Automated Clamping Cycle: Operators position the pre-installed bridge and activate the foot switch. The system automatically lifts the bridge from the rollers, clamps both sides securely, and applies top-down pressure on the copper conductors for a perfectly compacted fit.
           5. Efficient Discharge: Once riveting is complete, the foot switch release sequence returns the bridge to the roller surface, allowing it to glide to the discharge station for the next phase of fabrication.

AU Fabrication Scope & Requirements:

Comprehensive Technical Support:
           Each HQY255-125 unit includes full documentation compliant with AU workplace safety: Safety warnings, machine operational principles, pneumatic schematics, accessory lists, wiring diagrams, and safe operating procedures (SOP).

Watch: Busway Bridge Housing Assembly & Riveting Process for AU Projects
